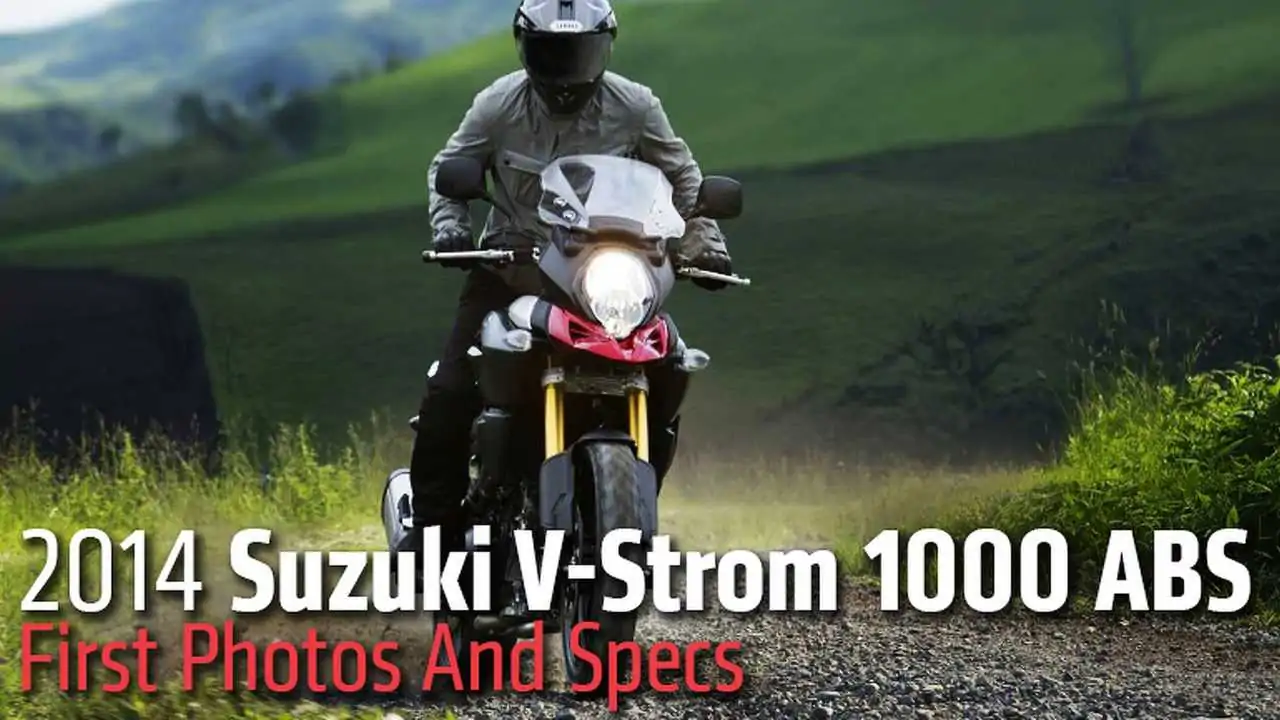

Essentially identical to the concept unveiled at Intermot last year, these first photos and complete details of the production 2014 Suzuki V-Strom 1000 ABS reveal a shockingly complete, high-spec, powerful, relatively light ADV bike.
Update: the new motor is said to develop 100bhp at 8,000rpm and 76lb-ft of torque at 4,000rpm. Disappointed? The bike was unveiled in France where a 100bhp power restriction is in effect, finger crossed...
The first generation V-Strom 1000 was launched back in 2002 and has remained in production since. Styling was never a strong point, but fitted with a version of the old Tl1000S' powerful v-twin housed in an aluminum beam frame, performance definitely was. This new, 2014 V-Strom 1000 is fitted with a heavily modified version of that v-twin in a new, aluminum frame. And, for the first tim on a Suzuki, this V-Strom includes Traction Control.
The engine has increased in capacity from 999 to 1,037 thanks to a 2mm increase in bore. Suzuki says this has been carried out without upping the weight of the pistons. Despite debuting in the TL1000S superbike all the way back in 1997, the motor has now been thoroughly redesigned not only to meet modern emissions requirements, but to suit the unique performance requirements of a big ADV bike like this one. New cylinders, heads, pistons, rings, connecting rods, crank, clutch and radiator combine to reduce weight and shift power and torque curves further down the rev range. Suzuki hasn't released a torque figure for the bike yet, but says it now develops more than the TL's 77lb-ft at a lower point in the revs — 4,000rpm.
That low-down torque is aided by a new single-canister exhaust fitted with a butterfly valve, something that combines with the new, two-spark-plug-per-cylinder design and advanced, 32-bit ECU as well as a comprehensive reduction in mechanical and frictional losses to up fuel economy to 49mpg. That should be good for a 260-mile range from the 5.3 gallon tank.
Power is delivered through a new, wider ratio 6-speed transmission and a slipper clutch which will prevent the rear wheel from locking during aggressive downshifts and which is said to also decrease the effort required to operate the clutch lever. Suzuki is famous for its slick, positive, easy-to-use transmissions.
The new frame increases the wheelbase from 60.4 to 61.2 inches while shortening the distance between front axle and swingarm pivot and growing the length of the swingarm. These changes should make the bike more stable and the bike's ability to put it's power down without losing traction.
Traction will, of course, be aided by Suzuki's first Traction Control system. That works by comparing front and rear wheel speeds to throttle and gear positions and crank speed, then limiting power via ignition timing and air delivery should a loss of traction be detected. The rider can switch between two modes of intervention or switch TC entirely off.
Safety will also be aided by a new ABS braking system complete with radial Tokico calipers and 310mm front discs. It's not currently clear if the new V-Strom's ABS can be toggled off.
Continue Reading: 2014 Suzuki V-Strom 1000 ABS >>
Which is one indication that this is a very road-oriented ADV bike. Front forks are upside-down 43mm items and fully adjustable, but the shock is only adjustable for preload. Wheel sizes remain 19-inch (front) and 17-inch (rear) and wheels are forged aluminum rather than the stronger-but-heavier spoked items you'd need for rugged off-roading.
But, V-Strom customers have been buying them for over 10 years not because they're great off-road, but because they're practical and versatile and comfortable and fast on it. And there, this new 1,000 will excel. The stock screen is adjustable through three heights and three angles; you can do so using no tools, with just one hand. Other convenience features include a 12v accessory socket located in the cockpit, a remote preload adjuster and an optional luggage system that includes hard panniers and top box. Other options include hand guards, crash protection and high and low seats, as well as a larger windscreen and a center stand — handy for adjusting the bike's drive chain.
Four colors will be available, all classy and understated — red, white, black and even a stylish khaki.
All that adds up to a bike which is now 18lbs lighter, torquier, more fuel efficient and which should be more suited to two-up travel and carrying luggage. Stay tuned to RideApart for more V-Strom news and reviews.
Wondering why all ADV bikes come with a non-functional "duck bill?" Suzuki actually invented the feature way back in 1998, with the bizarrely named DR Big.
